NEWLAND NLS-FM30 Serie

Quick Overview

The FM30 is ideal for kiosk integration and other POS solutions, which require a powerful scanner, built to read from contemporary LCD widescreen devices. In addition, the FM30 has extended capability of infrared reading, which means the device can detect barcodes under virtually any ambient light conditions, including night time.

Availability: In stock

Details

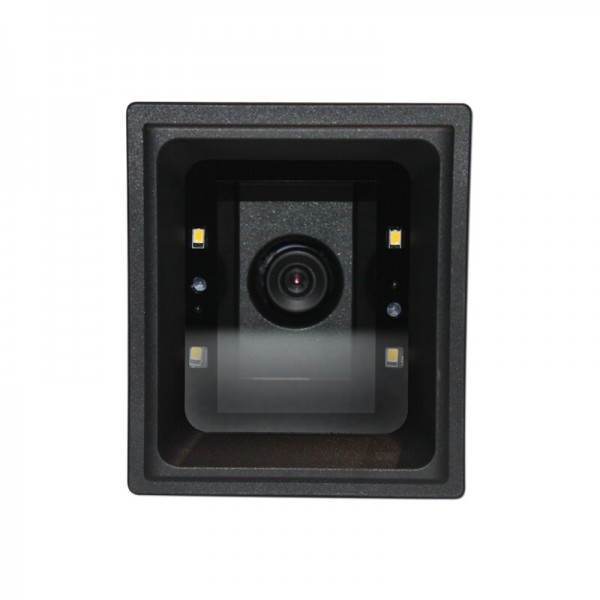

Newland’s FM30 fixed mount scanning solution is the latest addition to Newland’s broad range of future-forward OEM scanning devices. The FM30 desktop barcode data reader allows you to reliably read all 1D barcodes as well as QR Code, Data Matrix and PDF417 on various shapes and surfaces.

Built to read from an LCD screen, it can easily read barcodes from any mobile device screen. An extended capability of infrared reading allows the device to detect barcodes under virtually any ambient light. Whether you operate at daytime or nighttime, scanning is quick and efficient.

BENEFITS :

– Superior decoding performance

– Compact

– Simple Configuration

– Effortless scanning from a mobile phone screen

– Easy to install

FEATURES :

– 1D and 2D scanning, at an extraordinary speed

– High performance and minimal footprint

– Plug-and-play

– Specialized in reading from LCD screens

Click here to see the Newland presentation :

Additional Information

Additional Information	Performance Processor – IOTC 0370 CHIP Image Sensor – 752480 CMOS Symbologies* – 2D: PDF417, Data Matrix, QR Code – 1D: EAN-13, EAN-8, UPC-A, UPC-E, ISSN, ISBN, Codabar, Code 128 (FNC1, FNC2, FNC3), Code 93, ITF-6, ITF-14, Interleaved 2 of 5, Industrial 2 of 5, Standard 2 of 5, Matrix 2 of 5, GS1 Databar (RSS-Expand, RSS-Limited, RSS-14), Code 39, Code 11, MSI-Plessey, Plessey Resolution – ≥10mil Scan Mode – Sense mode Light Source – White LED Scan Window – 38.3mm×60.4mm Symbol Contrast – ≥30% Interface – RS-232, USB FOV – Diagonal: 85° – Horizontal: 63.7° – Vertical: 70° Physical/Electric Dimensions – 78.2×67.2×62mm (L×W×H) Weight – 300g Notification – Beep Max. Power Consumption – 1.75W Environmental Operating Temperature – 10℃~50℃ Storage Temperature – 20℃~60℃ Humidity – 5%~95% (non-condensing) Ambient Light – 0 ~ 100,000 LUX Accessories Cable – USB cable: Used to connect the FM30 to a host device. – RS-232 cable: Equipped with a power connector; used to connect the FM30 to a host device. Power Adapter – Used to provide power for the NLS-FM30. – Output: DC5V, 0.5A – Input: AC100~240V, 50~60Hz Certifications – FCC Part15 Class B, CE EMC Class B
Downloads	Click here to get the PDF file for this product
