Details

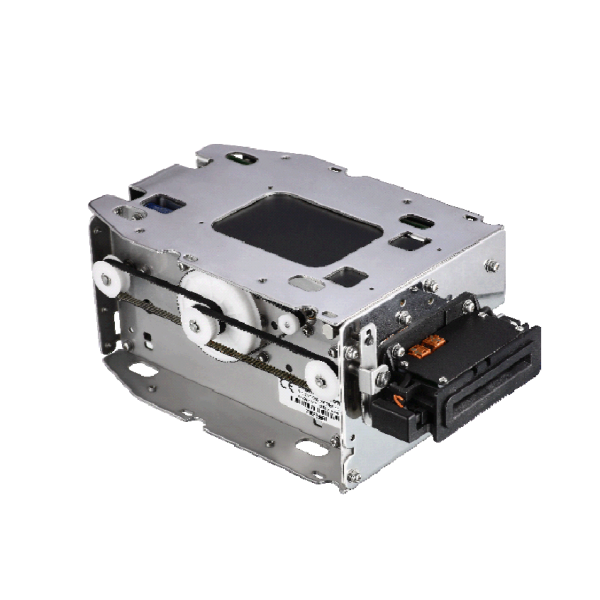

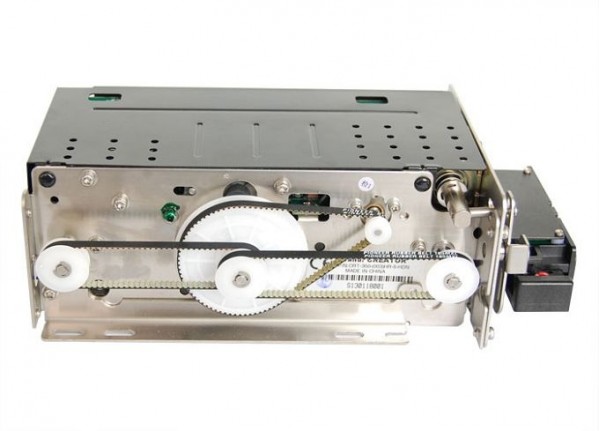

The CRT-350 is a reader and a writer of cards; compact, reliable and easy to maintain.
BENEFITS :
– Simple and easy to use
– Chip cards, RF and magnetic properties in a single device
– 3 in 1 (chip reader, RF card reader and magnetic card reader)
– Life time: 1,000,000 times min
– Two anti-skimming ways: hardware and software
FEATURES :
– Reception and an automatic issue of the paper
– Two optional card jitters to control card in and card out
– Electric Shutter
– Off-protection board, PSAM card (4/8 SAM card connectors)
– Multi-function
– Multiprotocol
– Conform to EMV and ROHS standard
– Paper detection sensors inside
Additional Information
| Additional Information | Card standard – Magnetic Card: ISO7810 ID-1,7811 – IC Card: ISO7816-2 – Support T=0,T=1 CPU Card – Support T=0,T=1 SIM Card – RF Card: ISO14443 TYPE A＆B – Support Mifare S50,S70,UL Card Life time – Magnetic head: 500,000 passes – IC card contact: 300,000 passes – Motor: 500,000 passes Communication – RS232 interface & USB interface option (HID) Power supply – DC 24V ±5% Current consumption – Standby current: 90mA – Peak current: 800mA Temperature/Humidity – Operation: 0~50℃/0 ~ 90% RH(Non condensing) – Storage: 25-80℃/0 ~ 90% RH(Non condensing) Dimension (LxWxH) – 215x124x90mm Weight – Approx .1.8kg |
|---|---|
